Place of Origin: | Hebei |
---|---|
পরিচিতিমুলক নাম: | Yuntong |
সাক্ষ্যদান: | CE , SGS |
Model Number: | YT--F-F |
Minimum Order Quantity: | 10 Sqm |
Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
Delivery Time: | 5-8 Work Days |
Payment Terms: | T/T, Western Union,PayPal |
Supply Ability: | 300Sqm/Week |

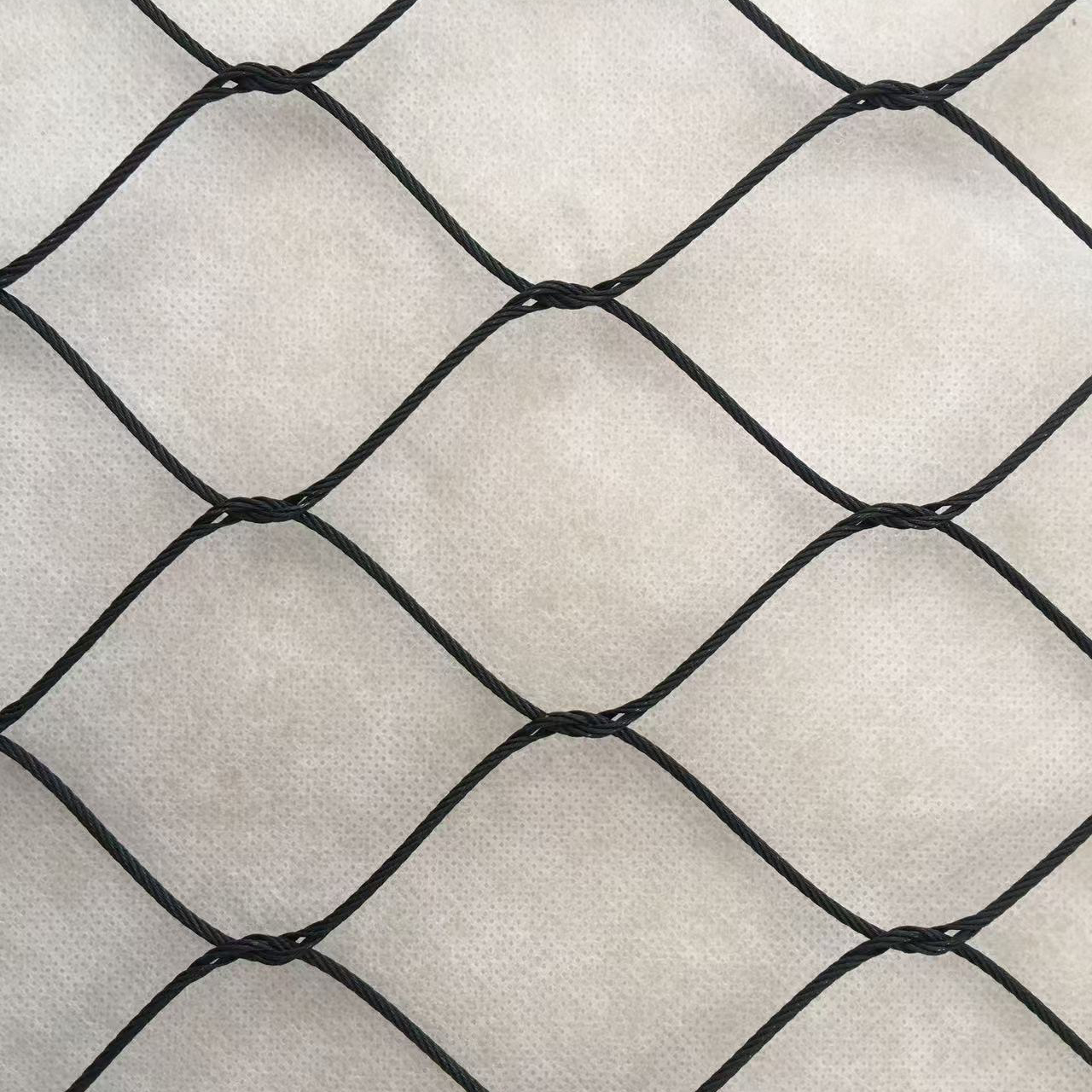

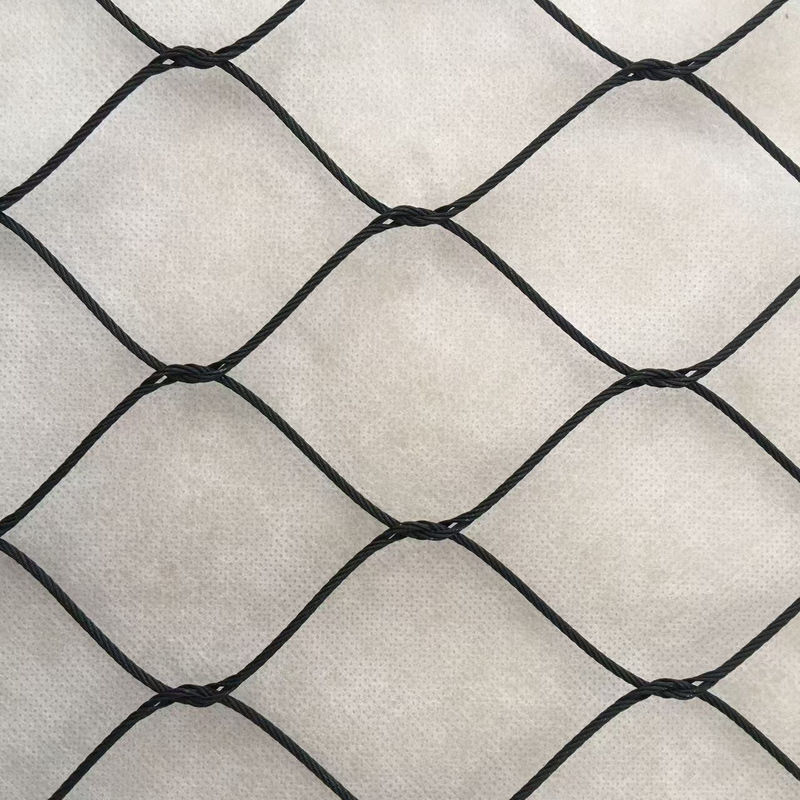

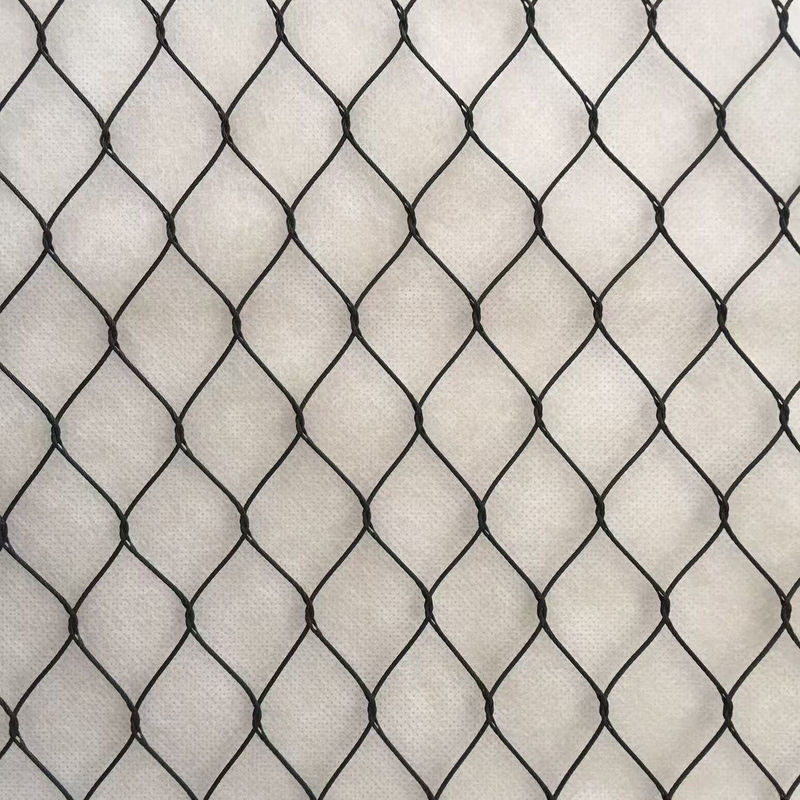

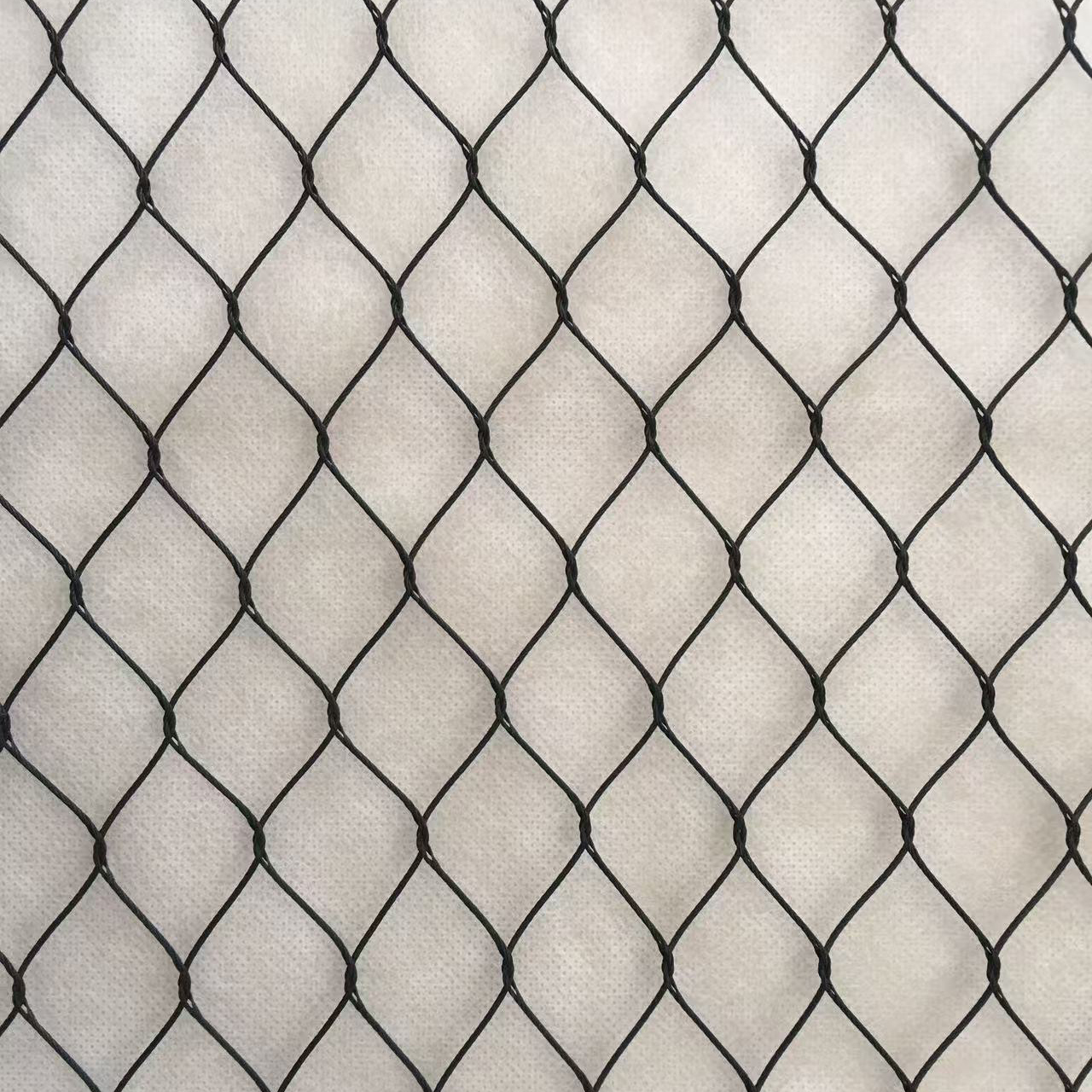

Name: | Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence | Wire Rope: | 1.2 mm to 4.0 mm |
---|---|---|---|
Finished: | Black Oxide | Rope Constructions: | 7 x 7 , 7 x 19 , 1 x 19 |
Mesh Orientation: | Horizontal , Vertical | Material: | Stainless Steel 304 , 316 , 316L |
Mesh Shape: | Rhombus , Diamond | Application: | Animal Enclosure , Aviary Netting , Garden Fence , Etc |
Mesh Angle: | 60 degree | Mesh Style: | X-tend Type |
বিশেষভাবে তুলে ধরা: | black oxide stainless steel garden fence,316L stainless steel wire rope,woven wire rope garden fence |
Attribute | Value |
---|---|
Name | Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence |
Wire Rope | 1.2 mm to 4.0 mm |
Finished | Black Oxide |
Rope Constructions | 7 x 7, 7 x 19, 1 x 19 |
Mesh Orientation | Horizontal, Vertical |
Material | Stainless Steel 304, 316, 316L |
Mesh Shape | Rhombus, Diamond |
Application | Animal Enclosure, Aviary Netting, Garden Fence, Etc |
Mesh Angle | 60 degree |
Mesh Style | X-tend Type |
Hole Size (Opening) | 1.2MM(3/64) (7 x 7) | 1.6MM(1/16) (7 x 7) | 2.0MM(5/64) (7 x 7) | 2.4MM(3/32) (7 x 7) | 3.2MM(1/8) (7 x 19) |
---|---|---|---|---|---|
20 x 35mm | YT-1235 | ||||
25 x 42mm | YT-1225 | YT-1625 | |||
30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material | Composition (%) |
---|---|
SS304 | C:≤0.07, Si:≤1.0, Mn:≤2.0, Cr:17.0-19.0, Ni:8.0-11.0, S:≤0.03, P:≤0.035 |
SS316 | C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
SS316L | C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0 |
Black Oxide Wire Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L. The mesh is custom manufactured to suit your balustrade, railing or architectural application. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design. Diagonal and irregular shapes can also be supplied.
Wire Rope Mesh by Yuntong is made from stainless steel wires and has skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical shapes.
Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND - the mesh can even stand up to heavy loads.
